naica® system workflow

Prepare the Sapphire chip

STEP 1
5 mins

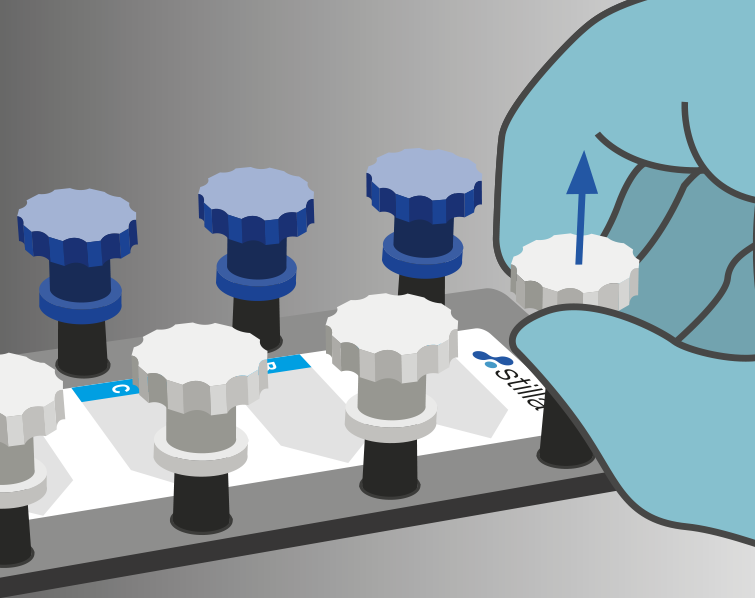

Unpack Sapphire Chip preloaded with emulsion oil and remove the white caps

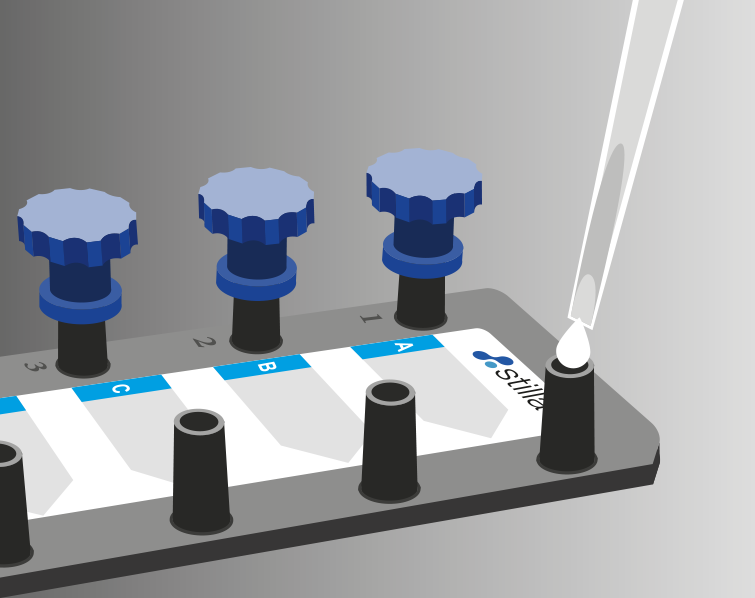

After sample preparation, pipette 25 μL of the reaction into the Sapphire chip wells

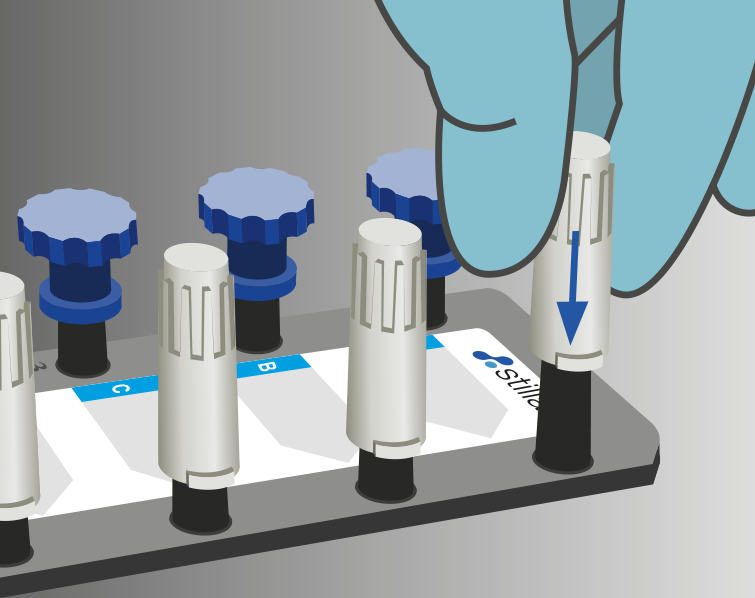

Seal inlet ports with PCR caps

Prepare the Opal chip

STEP 1
10 mins

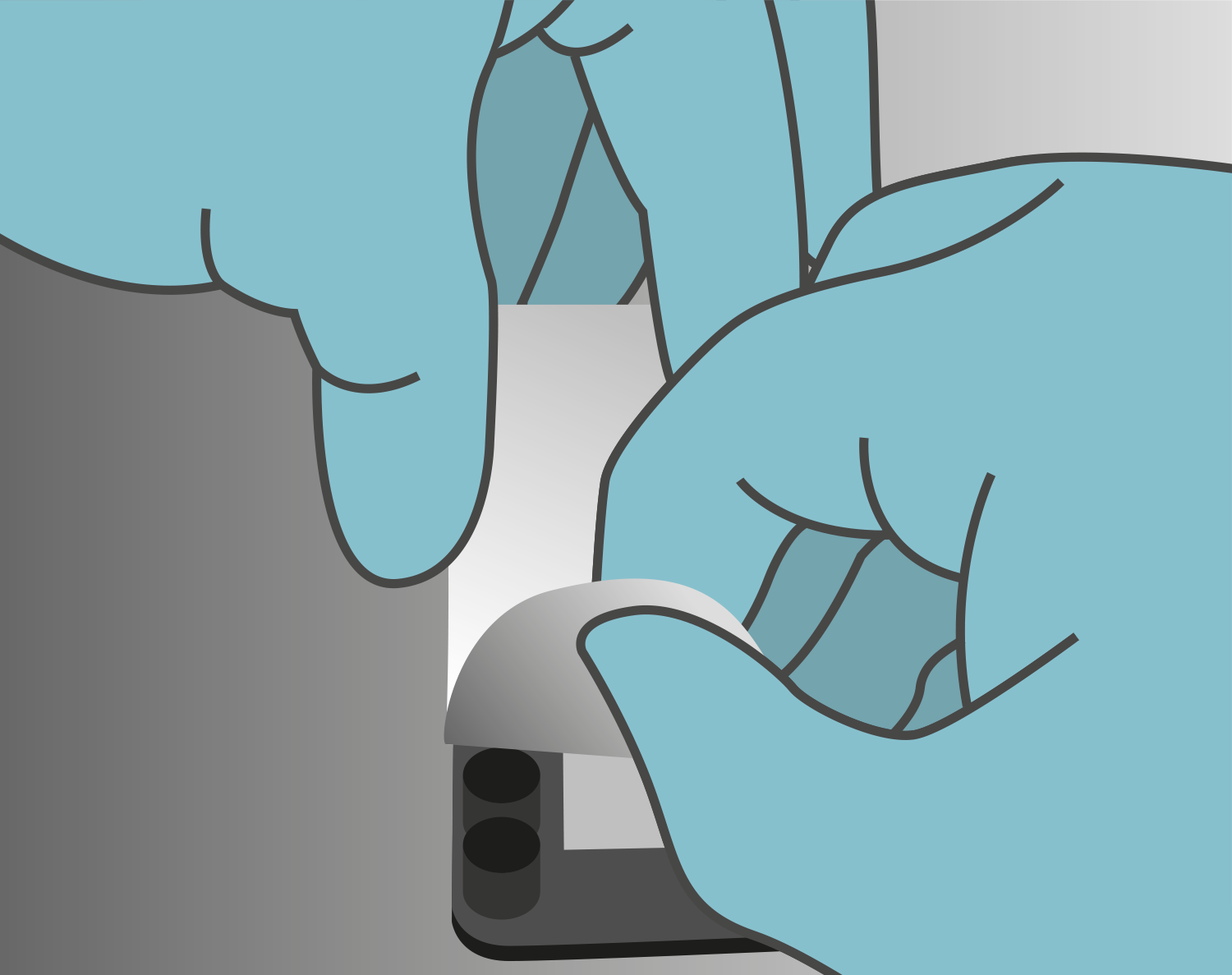

Carefully peel the aluminium foil of the Opal chip

After sample preparation, pipette 7 μL of the reaction into the Opal chip wells

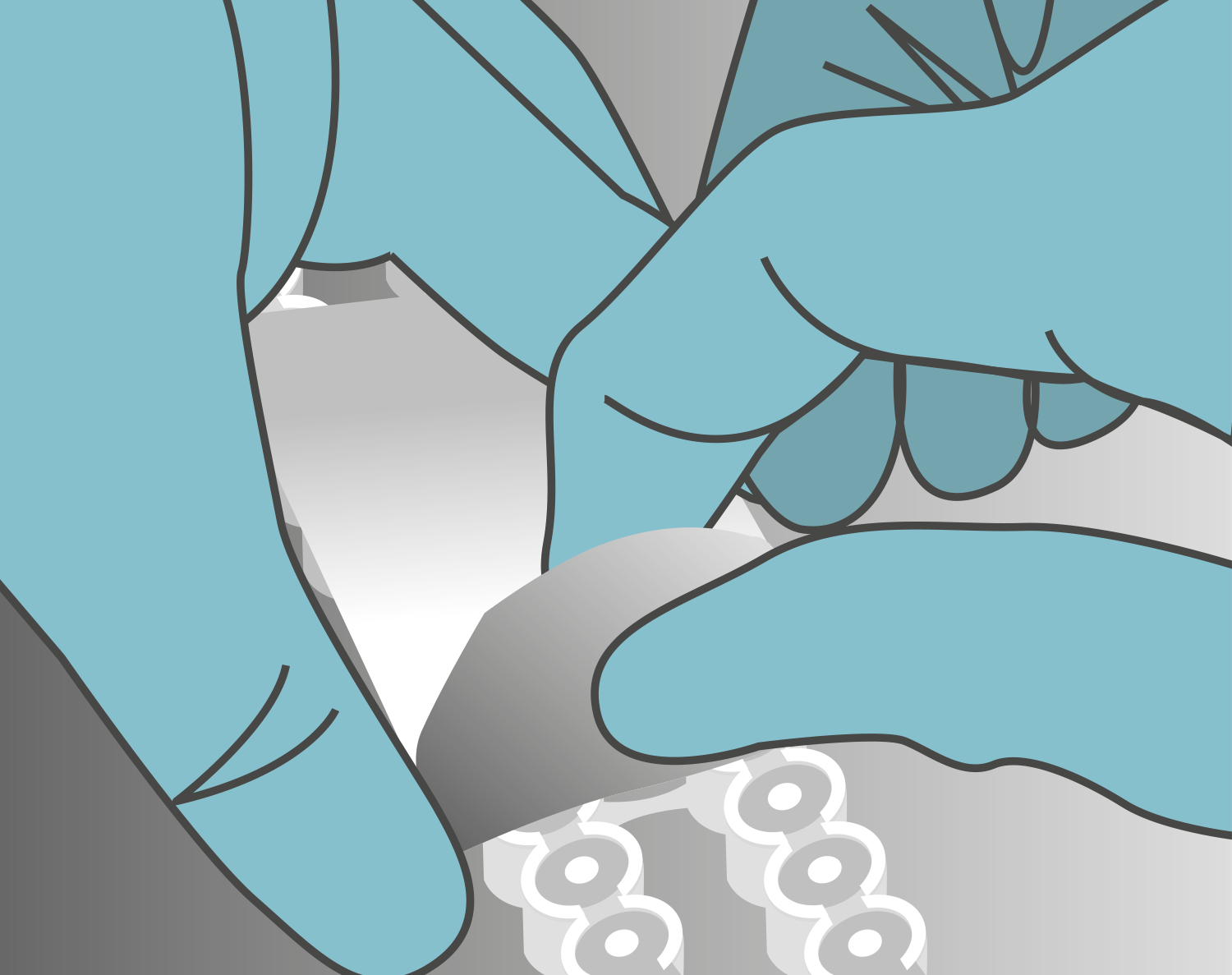

Carefully peel the aluminium foil from the caps

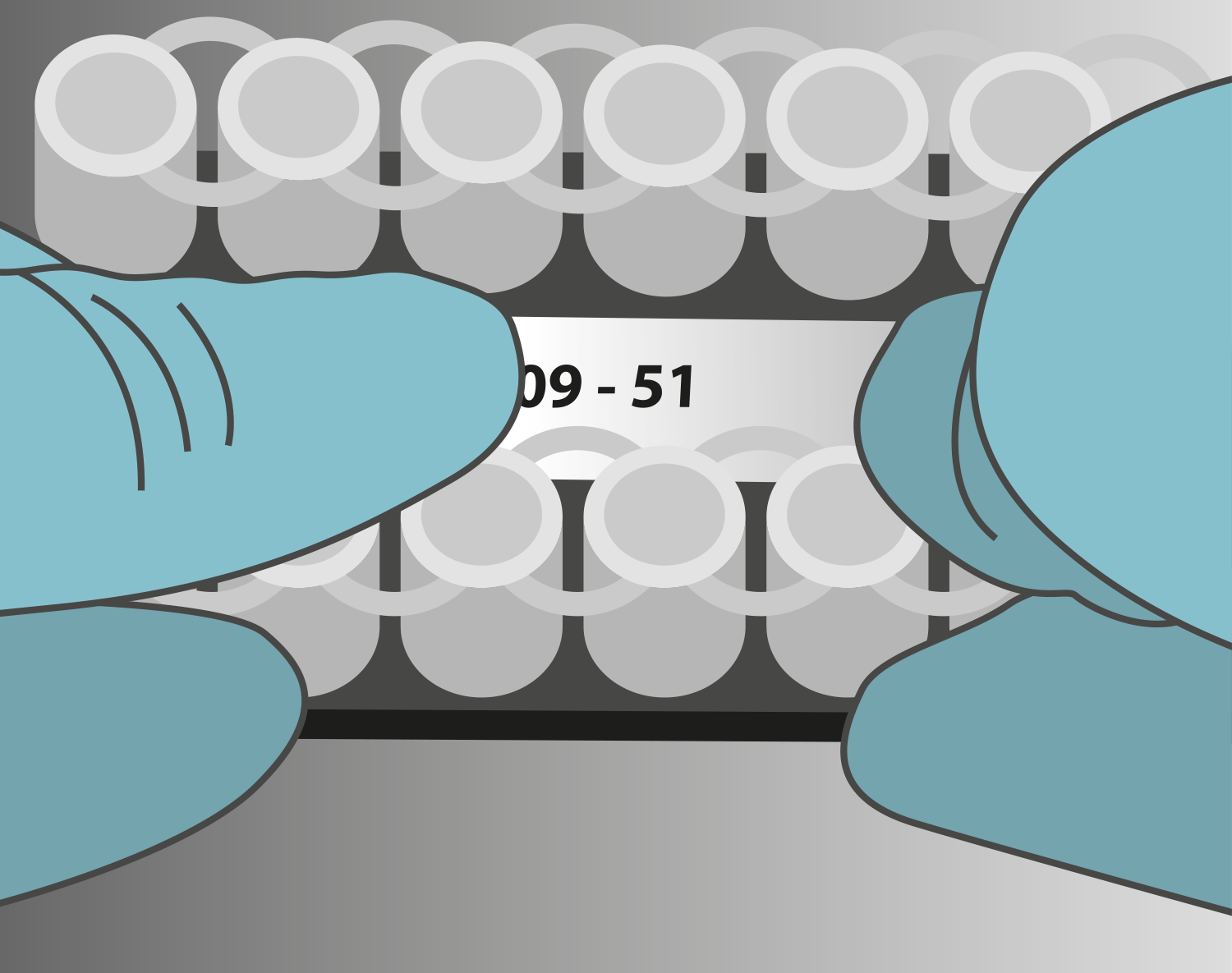

Position and seal the caps on top of the inlet port of the Opal chip
