A fast and simple
workflow

pippeting step

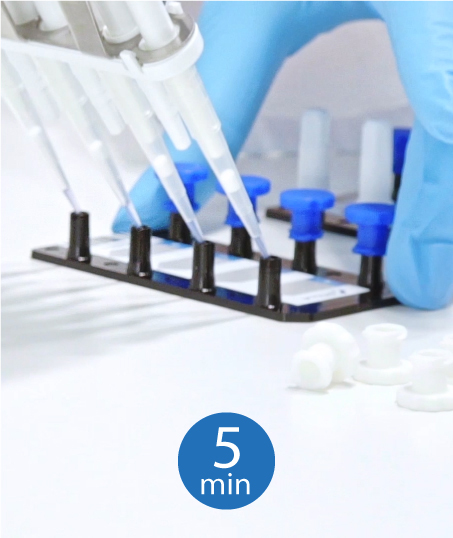

1 – PIPETTE SAMPLE

Only one pipetting operation for loading the reaction mixes into the wells of the Sapphire Chips.

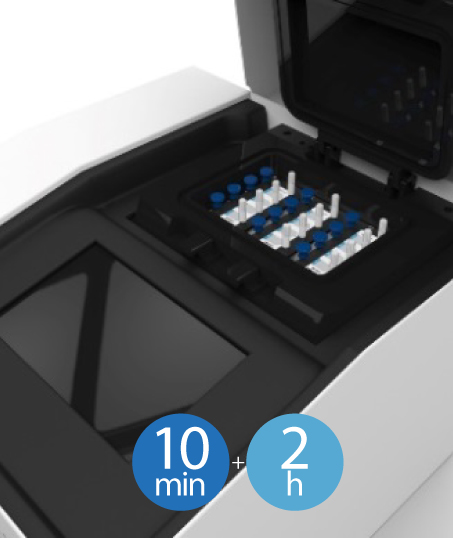

2 – GENERATE DROPLET CRYSTALS & AMPLIFY

Once the chips are placed into the Naica™ Geode, launch the combined partitioning and thermocycling program.

Crystals of 30,000 droplets are created from each sample, PCR amplification is performed immediately after crystal generation.

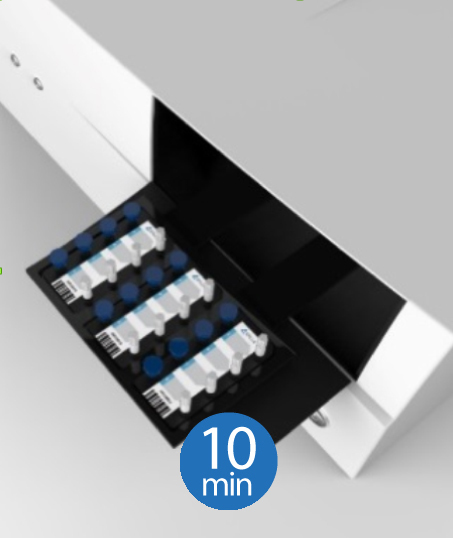

3 – READ THE CRYSTALS

Transfer the chips to the Naica™ Prism3 instrument.

Crystals are read using 3 fluorescent channels.

crystals
software analysis

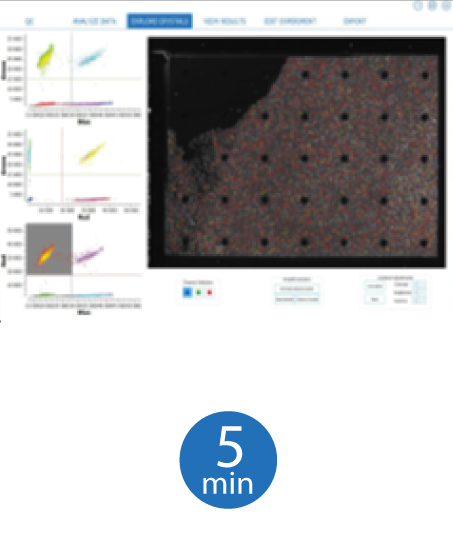

4 – ANALYZE THE DATA

The user-friendly Crystal Miner™ software automatically
measures the concentrations of targeted nucleic acids.

Analyze your data and explore your crystals using intuitive
visuals.

A fast and simple
workflow

pippeting step

1 – PIPETTE SAMPLE

Only one pipetting operation for loading the reaction mixes into the wells of the Sapphire Chips.

2 – GENERATE DROPLET CRYSTALS & AMPLIFY

Once the chips are placed into the Naica™ Geode, launch the combined partitioning and thermocycling program.

Crystals of 30,000 droplets are created from each sample, PCR amplification is performed immediately after crystal generation.

3 – READ THE CRYSTALS

Transfer the chips to the Naica™ Prism3 instrument.

Crystals are read using 3 fluorescent channels.

crystals
software analysis

4 – ANALYZE THE DATA

The user-friendly Crystal Miner™ software automatically
measures the concentrations of targeted nucleic acids.

Analyze your data and explore your crystals using intuitive
visuals.

Our Digital PCR video
Read our brochure
Request a quote
Read our bibliography

ABOUT CRYSTAL
DIGITAL PCR

Crystal Digital PCR is Stilla’s next-generation technology for absolute quantification of nucleic acids. Using cutting-edge microfluidic innovations, this technology integrates the Digital PCR process in a single consumable.

The sample is first flowed through a network of microchannels and partitioned into a large 2D array of 30,000 individual droplets, also called a dropet crystal. PCR is then performed on-chip and the crystal is imaged to reveal the droplets that contain amplified targets. The last step consists in counting the number of these positive droplets to precisely extract the absolute quantity of nucleic acids.

With Crystal Digital PCR, the combination of powerful image analysis and intuitive visual inspection offers an unmattched level of confidence in the digital pcr measurement, yielding data you can truy trust.

pcr digital

3-color digital PCR in 2h30
